The LWC Spiked Bale Grab is designed for moving multiple round or square bales quickly and safely. Built for use with telehandlers and loaders, it’s a simple, effective tool for busy yards and demanding fieldwork.

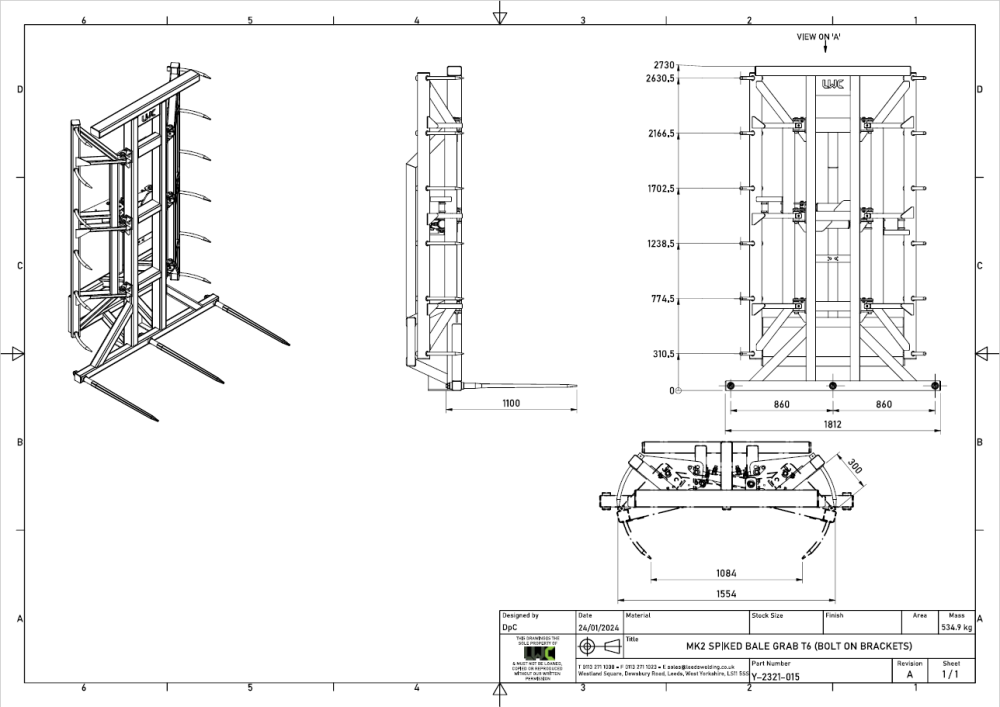

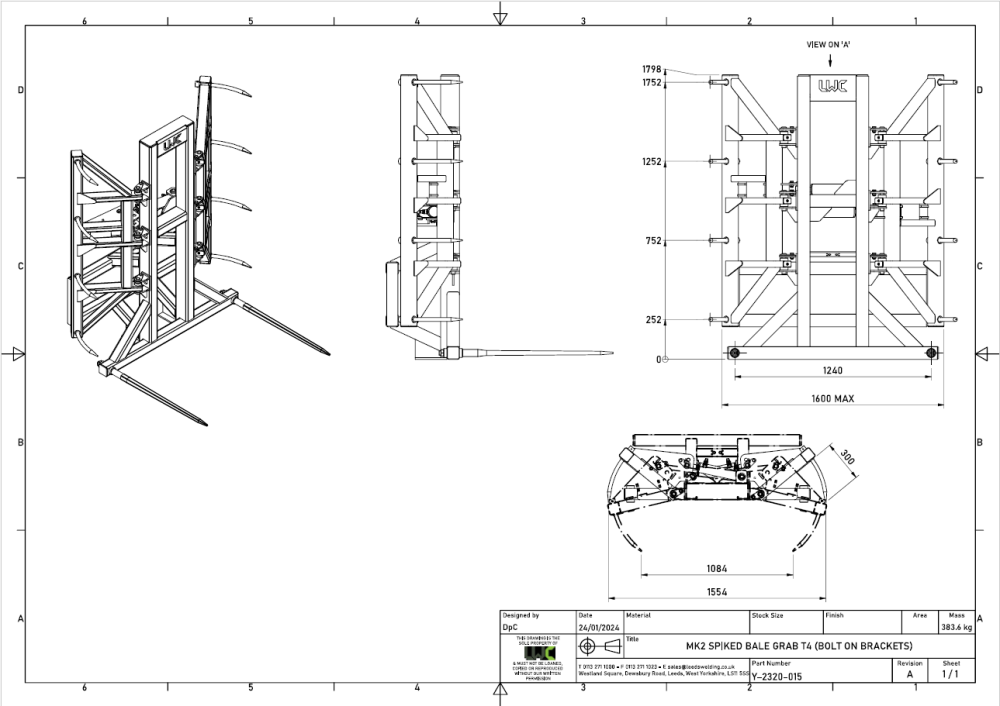

Model Height Round Bale Pick-up Square Bale Pick-up Max. Bale Weight Number of Side Tines Weight
T4 1800mm 2 3 1350 kg 4  (per arm) 384 kg
T6 2700mm 3 4 1800 kg 6  (per arm) 535 kg

    • Hydraulic Clamping

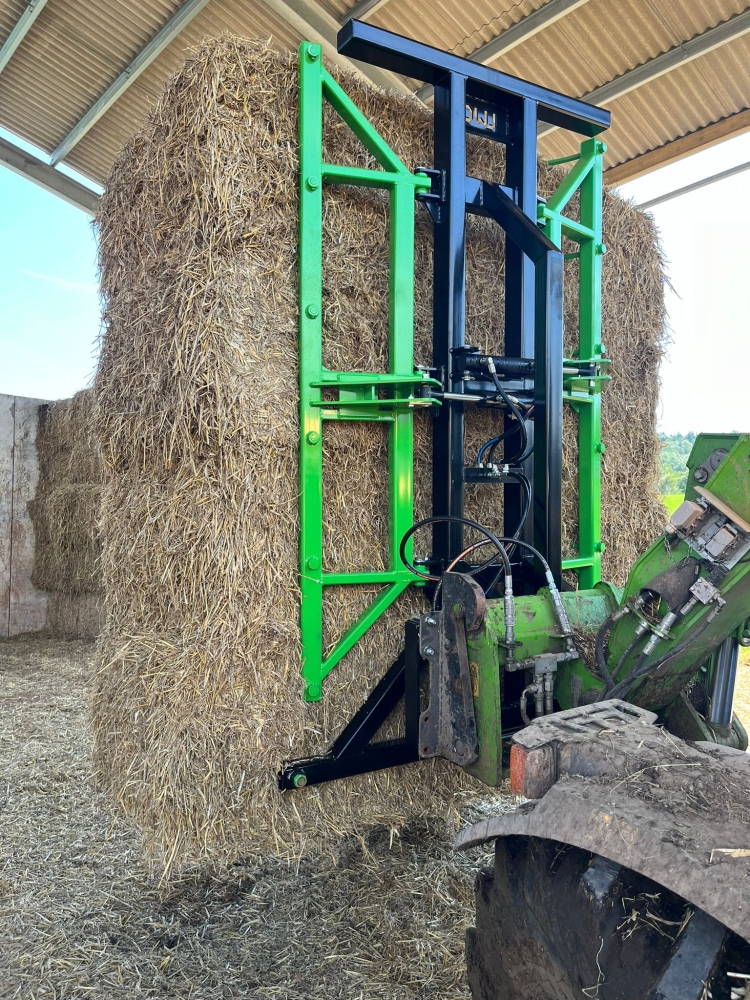

      Twin hydraulic rams control both arms, giving even, steady movement. Bales stay balanced during lifting and stacking.

    • Multiple Bale Handling

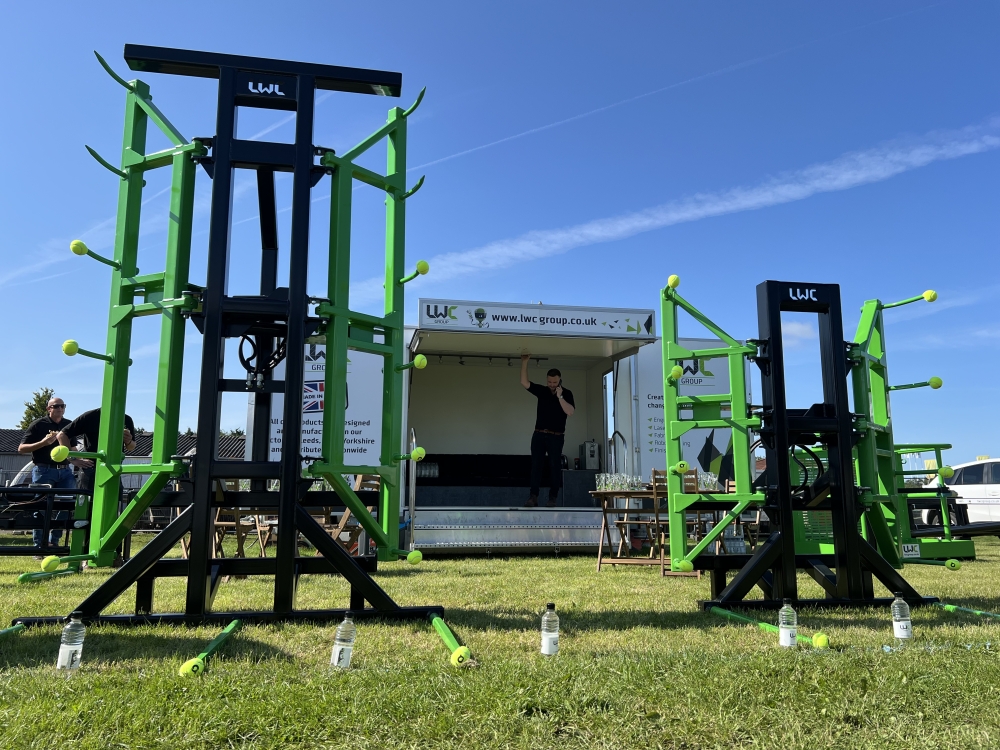

      Available in two sizes:

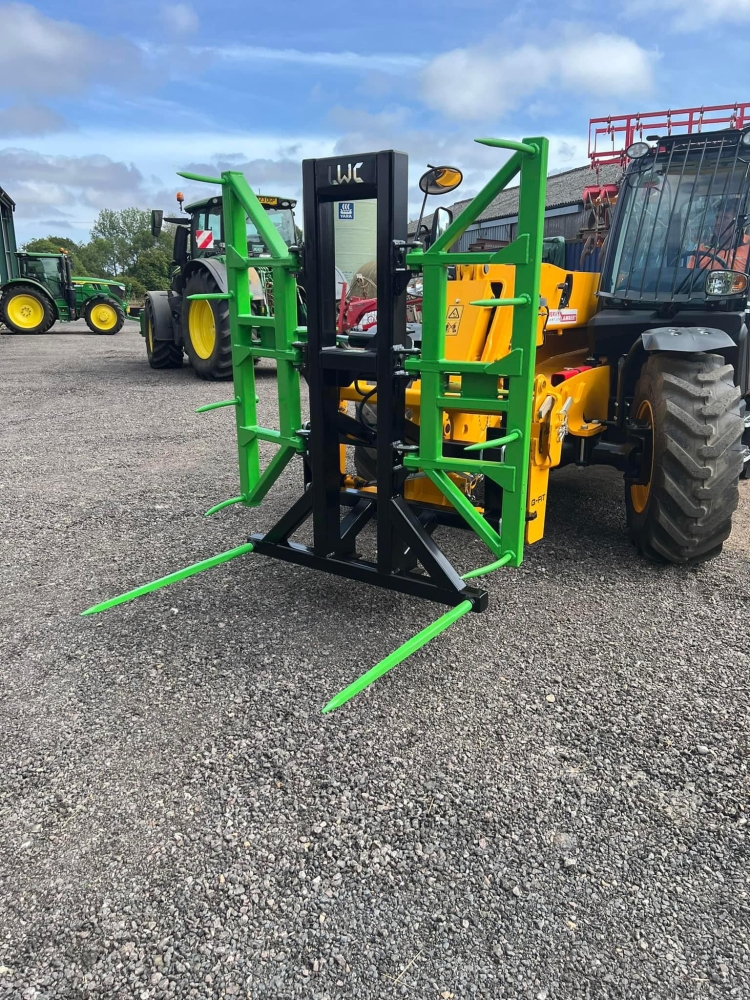

      • T4 – Moves up to 2 round or 3 square bales (max load 1350 kg)

      • T6 – Moves up to 3 round or 4 square bales (max load 1800 kg)

    • Bolt-in Tines
      Supplied with 1100 mm bolt-in tines. Curved and straight tine layout gives a secure grip.

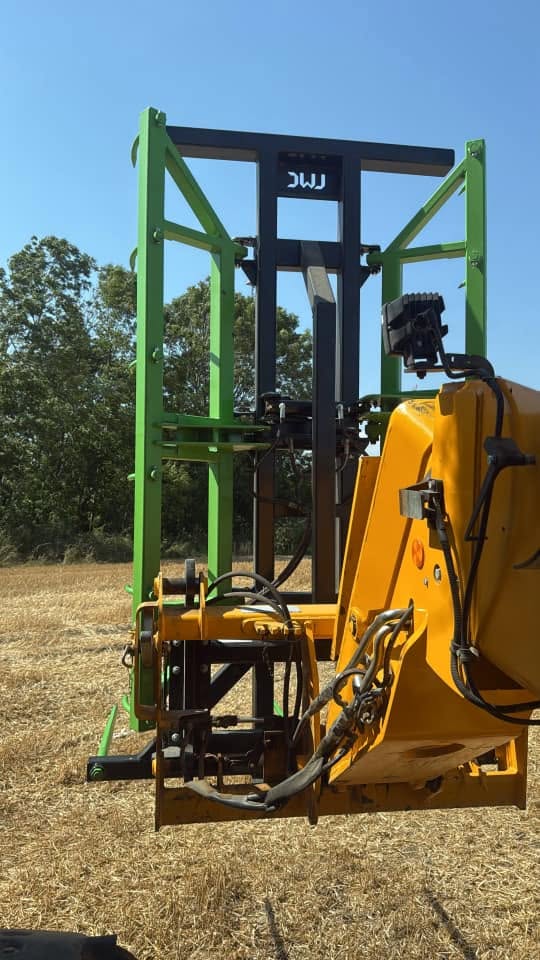

    • Bracket Options
      Comes with bolt-on brackets - tractor loaders or  telehandlers.

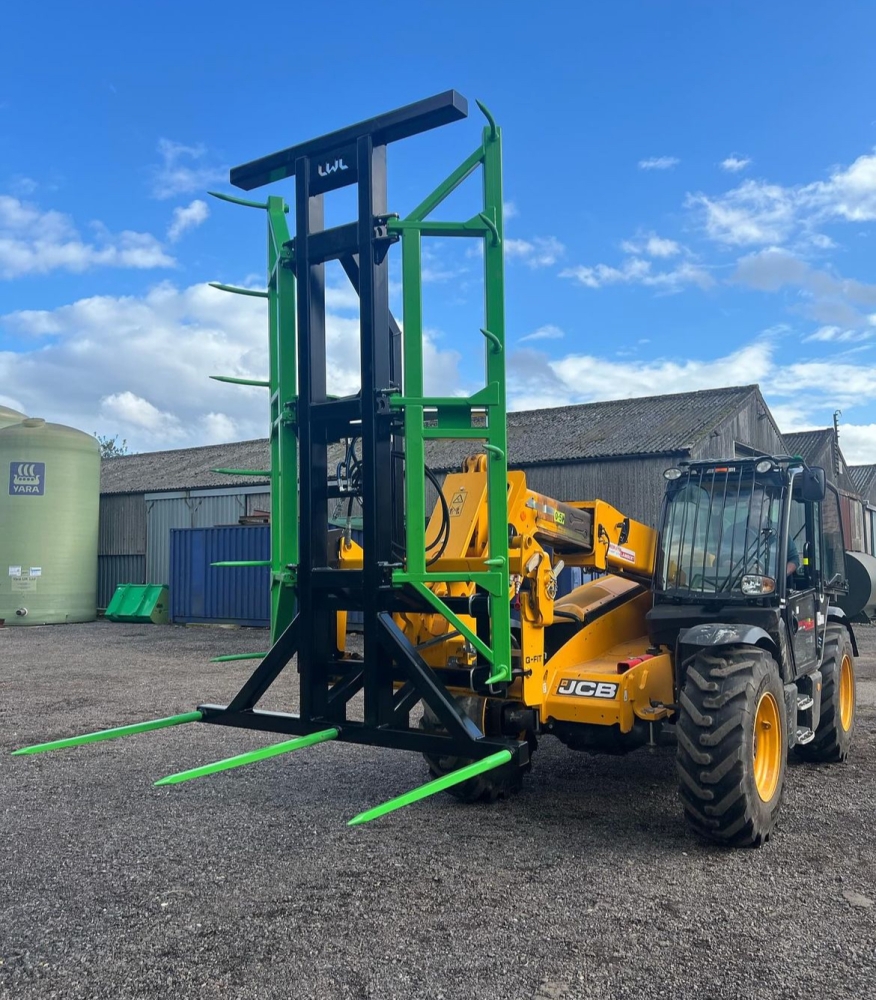

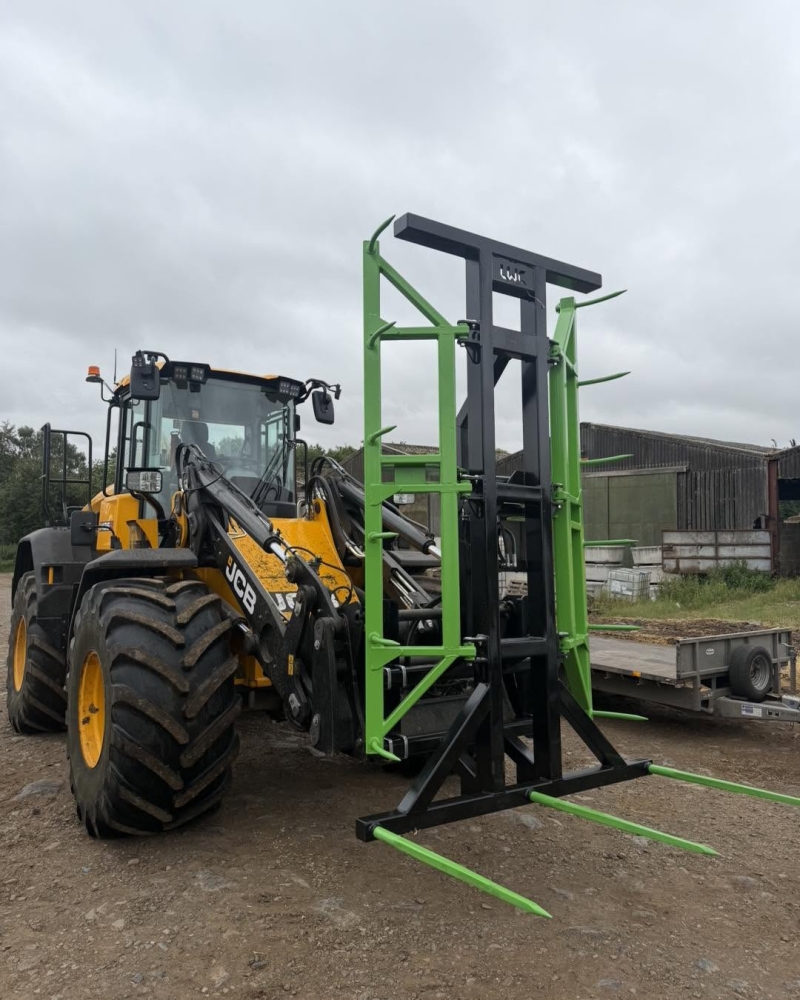

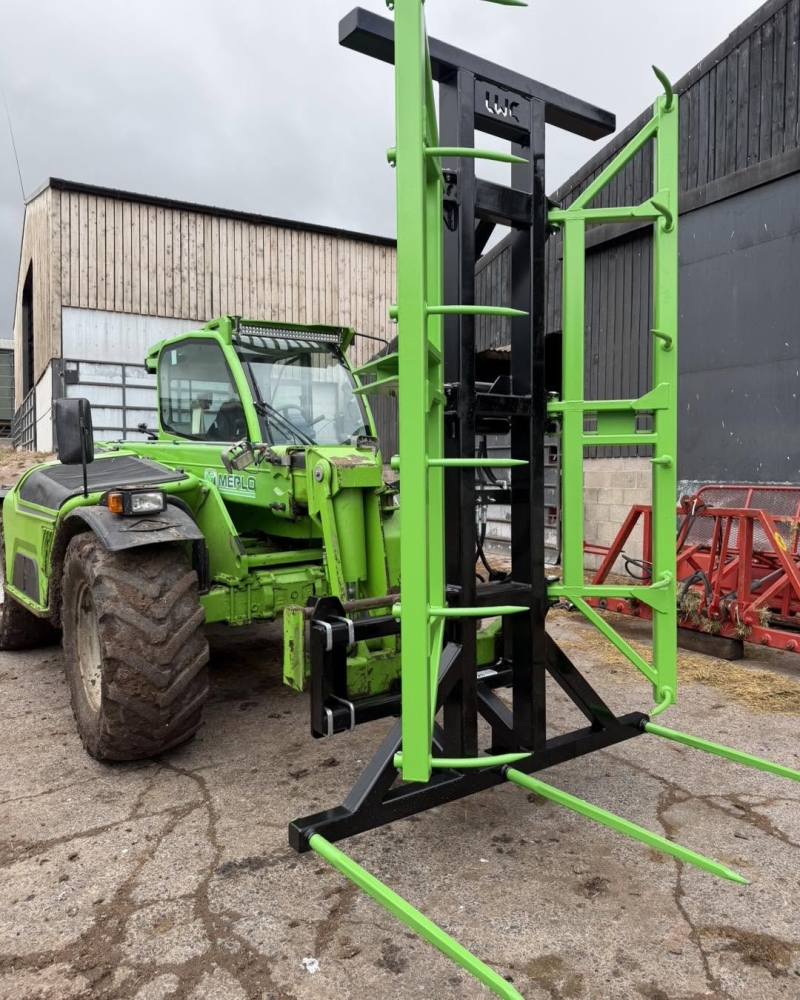

    • Top Bale Support (T6 only)

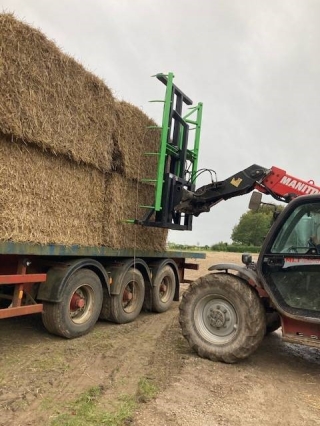

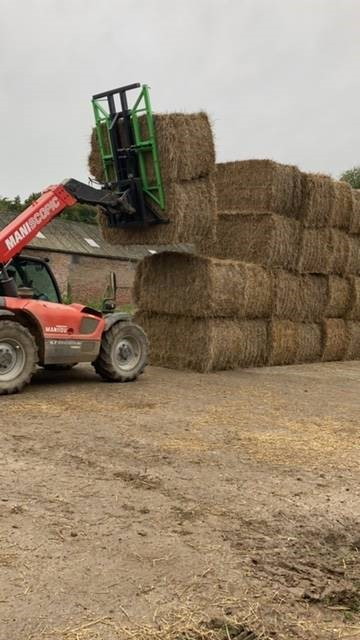

      Fitted with an overhead bar to help push bales into stacks or trailers cleanly without damage.

    Spiked Bale GrabsSpiked Bale Grabs

    Gallery

    UK Manufacturer

    As the LWC Group, we have access to the best manufacturing technology in the world, from high speed automated laser cutting to Robotic Welding. Our facillities are hard to beat allowing us to produce quality goods in cost effective ways and with all services under one roof.
